mk2 speedo dial mod green lights

Post by alan_uk »

Hi all,

have any of you guys changed your speedo bulbs to green led's or done the mod like shinny using the gel sheets and gone green

ive changed mine to red but my last 3 mr2's were all also green and with the car being red also i kinda want to try stay oem,ish

i wanted green back lit but wanted the needles to stay red if that is at all possible

if anyone has done either or any other style of mod using freen for colour choice

please would you be so kind as to post a pic or 2 and a little write up how you did it please

very much appreciated :thumleft:
Draven
Posts: 14968
Joined: Fri Feb 10, 2006 8:34 am
Location: One of the Hamptons.
Contact:

Re: mk2 speedo dial mod green lights

Post by Draven »

I've done mine but to blue. Its simple just follow shinny's explanation and it works well. I've got a few issues with mine that I need to work on light spead isn't quite good enough. I'm also working on the heater controls.
alan_uk
Posts: 1851
Joined: Sun Aug 12, 2012 12:25 pm

Re: mk2 speedo dial mod green lights

Post by alan_uk »

I would happily pay someone to do my heater unit for me lol
Draven
Posts: 14968
Joined: Fri Feb 10, 2006 8:34 am
Location: One of the Hamptons.
Contact:

Re: mk2 speedo dial mod green lights

Post by Draven »

:shock: Yeah based on how long it takes it would be expensive.
gerbil1028
Posts: 1618
Joined: Wed Jul 25, 2007 10:15 pm
Location: NEWBURY BERKS

Re: mk2 speedo dial mod green lights

Post by gerbil1028 »

Slight side track.

Are the bulbs in heater controls simple easy to source from a parts supplier place or something stupid and special.
One day the Phoenix will rise from the ashes.
alan_uk
Posts: 1851
Joined: Sun Aug 12, 2012 12:25 pm

Re: mk2 speedo dial mod green lights

Post by alan_uk »

i beleive you have to solder your own led's in place if you look at shinny's carribean blue thread in members profile it shows how to in there
gerbil1028
Posts: 1618
Joined: Wed Jul 25, 2007 10:15 pm
Location: NEWBURY BERKS

Re: mk2 speedo dial mod green lights

Post by gerbil1028 »

Just meant the standard bulbs.
One day the Phoenix will rise from the ashes.
alan_uk
Posts: 1851
Joined: Sun Aug 12, 2012 12:25 pm

Re: mk2 speedo dial mod green lights

Post by alan_uk »

i think there a strip light im not sure ive never stripped 1 out lol
gerbil1028
Posts: 1618
Joined: Wed Jul 25, 2007 10:15 pm
Location: NEWBURY BERKS

Re: mk2 speedo dial mod green lights

Post by gerbil1028 »

Looks like single twist in bulbs just dunnoe if standard easy to replace over trade counter kind.
One day the Phoenix will rise from the ashes.
alan_uk
Posts: 1851
Joined: Sun Aug 12, 2012 12:25 pm

Re: mk2 speedo dial mod green lights

Post by alan_uk »

you got it off ?
gerbil1028
Posts: 1618
Joined: Wed Jul 25, 2007 10:15 pm
Location: NEWBURY BERKS

Re: mk2 speedo dial mod green lights

Post by gerbil1028 »

Yeah just not with me and wondering if its going to be a pain to get bulbs tomorrow.
One day the Phoenix will rise from the ashes.
alan_uk
Posts: 1851
Joined: Sun Aug 12, 2012 12:25 pm

Re: mk2 speedo dial mod green lights

Post by alan_uk »

id like to know if there is a straight swap bulb for them if you do manage it :)
Torero
Posts: 1578
Joined: Sat Nov 29, 2008 11:33 pm
Location: Westminster, London
Contact:

Re: mk2 speedo dial mod green lights

Post by Torero »

gerbil1028 wrote:Looks like single twist in bulbs just dunnoe if standard easy to replace over trade counter kind.

They are indeed, they have a plastic base and simply twist out of the heater unit.

You just need to remove the heater from the dash centre panel but you don't need to take it apart to remove or refit them.
3VZ-FE V6 TRD Widebody Replica

Draven wrote "TRD dude. TRD... Can see awesomness from anywhere. "

http://www.imoc.co.uk/forums/viewtopic. ... sc&start=0
gerbil1028
Posts: 1618
Joined: Wed Jul 25, 2007 10:15 pm
Location: NEWBURY BERKS

Re: mk2 speedo dial mod green lights

Post by gerbil1028 »

3 bulbs of twist type so assume worst case Toyota would do.
One day the Phoenix will rise from the ashes.
alan_uk
Posts: 1851
Joined: Sun Aug 12, 2012 12:25 pm

Re: mk2 speedo dial mod green lights

Post by alan_uk »

im sure there would be so many more bulbs than 3 in a mk2 heater control unit each switch has its own seperate 2 lights 1 for showing its on and the other lighting up the actual picture on the button ?

we talking about the same unit here ?
Torero
Posts: 1578
Joined: Sat Nov 29, 2008 11:33 pm
Location: Westminster, London
Contact:

Re: mk2 speedo dial mod green lights

Post by Torero »

alan_uk wrote:Hi all,

have any of you guys changed your speedo bulbs to green led's or done the mod like shinny using the gel sheets and gone green

ive changed mine to red but my last 3 mr2's were all also green and with the car being red also i kinda want to try stay oem,ish


Hi Alan, good to have you back on the forum again buddy :thumleft:

I've done the mod and would try and avoid green as firstly it changes the tone of the gel/actetate that it's trying to illuminate and secondly, it will make the needles look pants as the red actually looks completely flat and dark.

I know this as I've tried it with blue and the result was not very impressive. Red is better but I have done this:


These are in daylight.




I used flat white SMD bulbs that simply slot in where the OEM ones go and don't give out any hot spots. I've also used red acetate as the SMDs are so bright they dilute the colour of the gauges. The best bit was I used some special regenerating paint to bring the luminosity back to he needles and it worked a treat.

I bought 2 tubes of the paint for around£20 and I still have one unopened along with plenty of spare acetate and I might even have some SMDs left if you need any.

I wouldn't go green for that reason but thw white with red acetate is very sharp and reminds me of the dash on newer cars, so makes teh 2 a lot more modern but keeps the OEM stamp.

John.

I've p
Last edited by Torero on Mon Dec 15, 2014 9:03 pm, edited 1 time in total.
3VZ-FE V6 TRD Widebody Replica

Draven wrote "TRD dude. TRD... Can see awesomness from anywhere. "

http://www.imoc.co.uk/forums/viewtopic. ... sc&start=0
gerbil1028
Posts: 1618
Joined: Wed Jul 25, 2007 10:15 pm
Location: NEWBURY BERKS

Re: mk2 speedo dial mod green lights

Post by gerbil1028 »

Yeps and without breaking it open there is 3 screw in type bulbs.

1. Around ac switch
2. Around air flow position buttons
3. Below flow controls around the temperature selection area.

Maybe more but not pukked apart yet and assume they will be main ones to make display fronts readable at night as mines just plain black lol.
One day the Phoenix will rise from the ashes.
alan_uk
Posts: 1851
Joined: Sun Aug 12, 2012 12:25 pm

Re: mk2 speedo dial mod green lights

Post by alan_uk »

Torero wrote:
alan_uk wrote:Hi all,

have any of you guys changed your speedo bulbs to green led's or done the mod like shinny using the gel sheets and gone green

ive changed mine to red but my last 3 mr2's were all also green and with the car being red also i kinda want to try stay oem,ish


Hi Alan, good to have you back on the forum again buddy :thumleft:

I've done the mod and would try and avoid green as firstly it changes the tone of the gel/actetate that it's trying to illuminate and secondly, it will make the needles look pants as the red actually looks completely flat and dark.

I know this as I've tried it with blue and the result was not very impressive. Red is better but I have done this:

Image Replaced With URL For Quote [url]http://i1012.photobucket.com/albums/af244/Torero26/dials4a_zpsbe1c07ef.jpg[/URL]

These are in daylight.

Image Replaced With URL For Quote [url]http://i1012.photobucket.com/albums/af244/Torero26/dials3a_zps60f12853.jpg[/URL]

Image Replaced With URL For Quote [url]http://i1012.photobucket.com/albums/af244/Torero26/dials2a_zpsfa412ecf.jpg[/URL]

Image Replaced With URL For Quote [url]http://i1012.photobucket.com/albums/af244/Torero26/dials1a_zpsd1f9c8ed.jpg[/URL]

I used flat white SMD bulbs that simply slot in where the OEM ones go and don't give out any hot spots. I've also used red acetate as the SMDs are so bright they dilute the colour of the gauges. The best bit was I used some special regenerating paint to bring the luminosity back to he needles and it worked a treat.

I bought 2 tubes of the paint for around£20 and I still have one unopened along with plenty of spare acetate and I might even have some SMDs left if you need any.

I wouldn't go green for that reason but thw white with red acetate is very sharp and reminds me of the dash on newer cars, so makes teh 2 a lot more modern but keeps the OEM stamp.

John.

I've p


thanks mate

good to be back, however with regards to this shinny has used blue and it has worked really well ? i do like what you have done very much it looks exactly the same as our audi a4's dials

i was wanting to go green to match the whole heater dials and window/fog switches, as my dials at the min are red :(
Torero
Posts: 1578
Joined: Sat Nov 29, 2008 11:33 pm
Location: Westminster, London
Contact:

Re: mk2 speedo dial mod green lights

Post by Torero »

No worries Al, I've plenty of bits around the place if you need them though.

Remember not to replace the fuel warning light with an LED as it needs a filament bulb to pull the correct voltage to work.
3VZ-FE V6 TRD Widebody Replica

Draven wrote "TRD dude. TRD... Can see awesomness from anywhere. "

http://www.imoc.co.uk/forums/viewtopic. ... sc&start=0
alan_uk
Posts: 1851
Joined: Sun Aug 12, 2012 12:25 pm

Re: mk2 speedo dial mod green lights

Post by alan_uk »

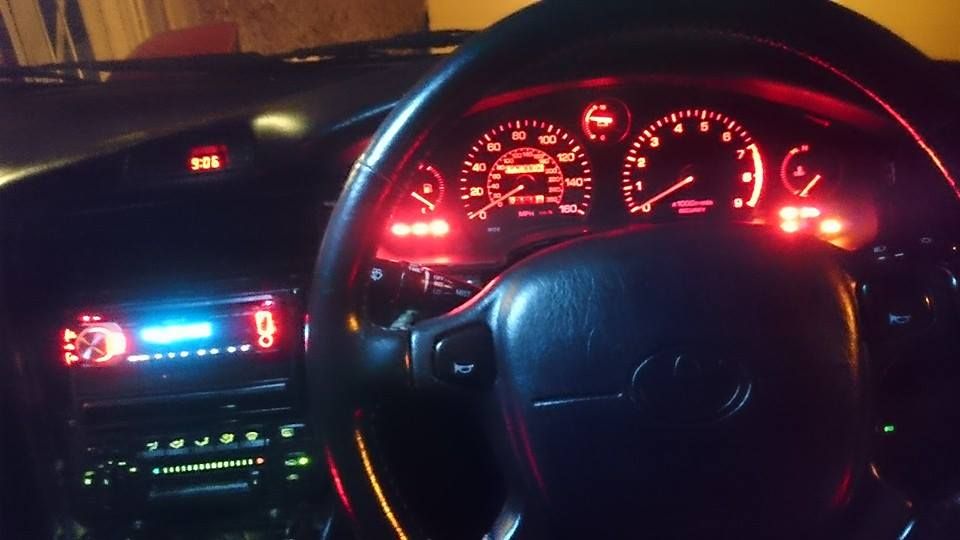

aye i only change whats needed :D currently looks like this
