My MR2 - the dark destroyer

Jimbob · Post by **Jimbob** » Sat Jun 30, 2007 5:24 pm

I see you copied my white cam cover?

Century Motorsport · Post by **Century Motorsport** » Sat Jun 30, 2007 7:26 pm

It looks white Jim, but its actually grey

Jimbob · Post by **Jimbob** » Sat Jun 30, 2007 7:46 pm

Man your camera work is bad!

Instead of a N95 I have a housebrick with a camera taped to it and my old phone, its slightly lighter and slightly smaller

Grey is very different, nice move

rossdymond3352 · Post by **rossdymond3352** » Mon Jul 02, 2007 12:36 am

Im actually lost for words......

Nope im still lost!

Bloody fantastic fella

Century Motorsport · Post by **Century Motorsport** » Mon Jul 02, 2007 8:39 am

Cheers guys,

Im away till thurs now, but when i get back the block will be asembled and everything checked to ensure every tolerance is bob on then the rest of the build will (hopefully) be completed the week after... then its just fitting it in and getting it mapped.

Nathan

Century Motorsport · Post by **Century Motorsport** » Fri Jul 06, 2007 12:53 am

Well the block is pretty much done - just needs to be decked, honed and sprayed.

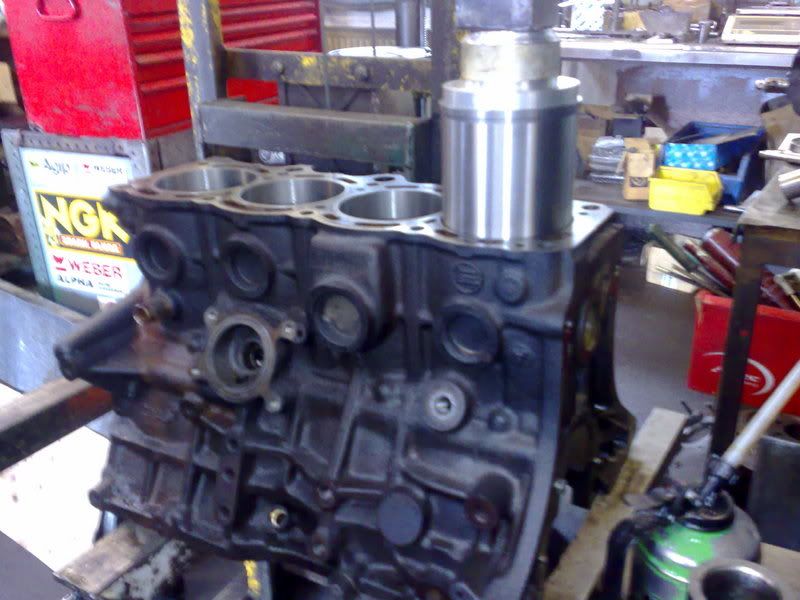

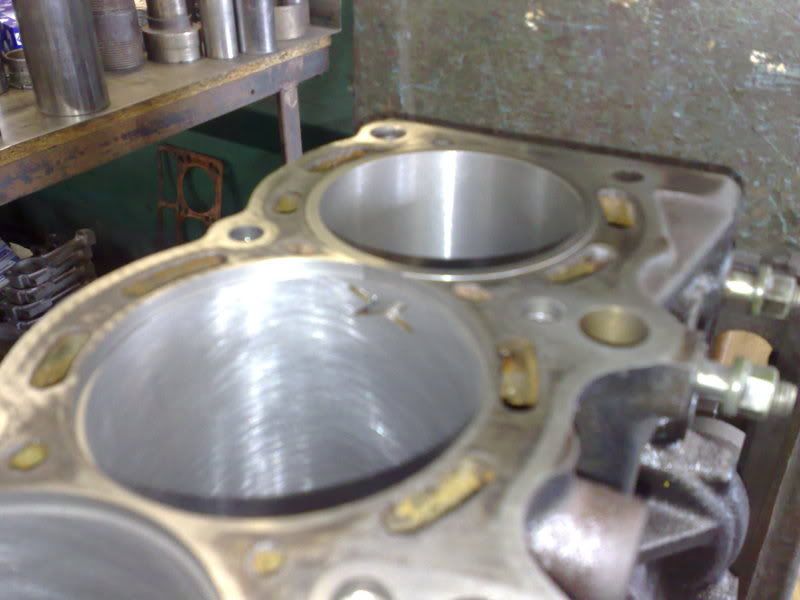

Here are some pics of the sleeves going in...

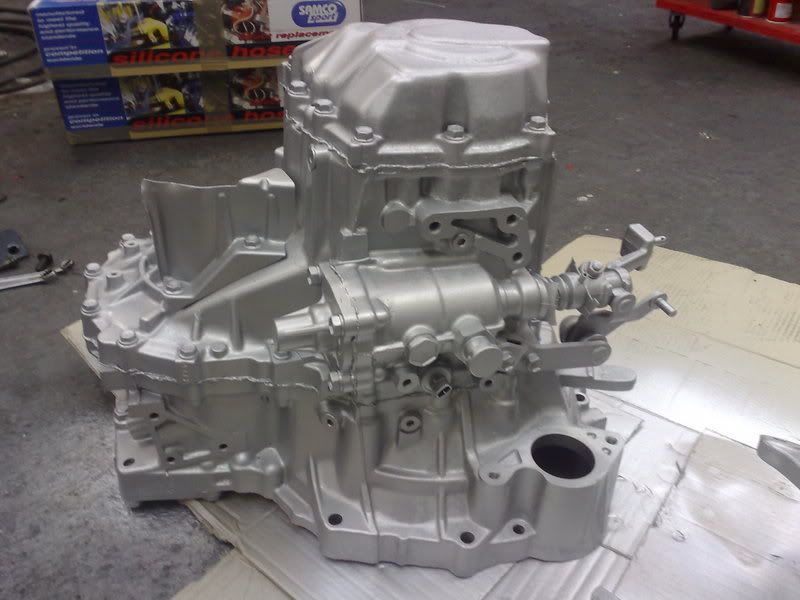

Spent some time cleaning and painting things also and fitting new CV boots - messy job!

Century Motorsport · Post by **Century Motorsport** » Fri Jul 06, 2007 5:54 pm

More pics!

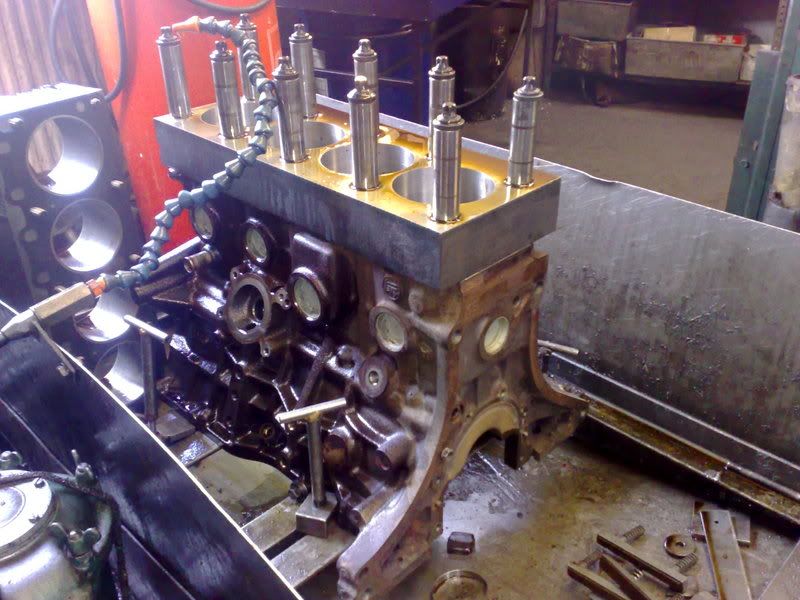

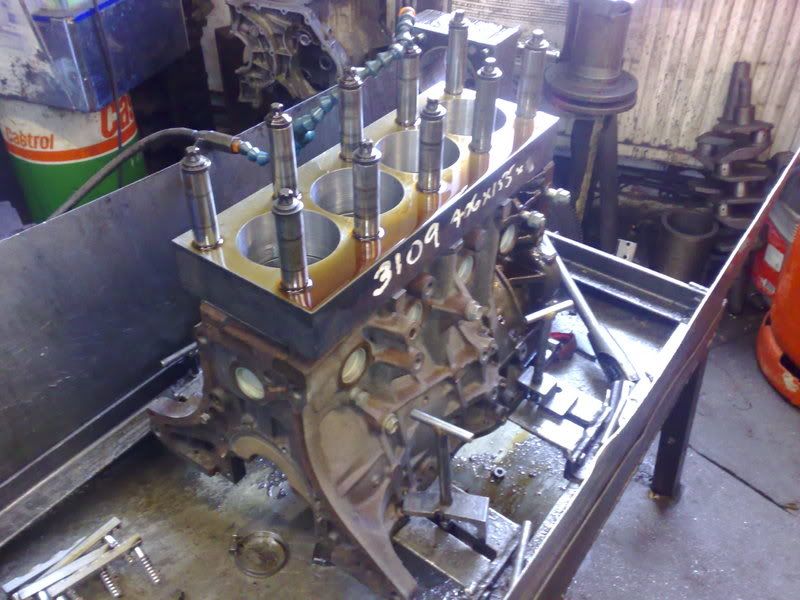

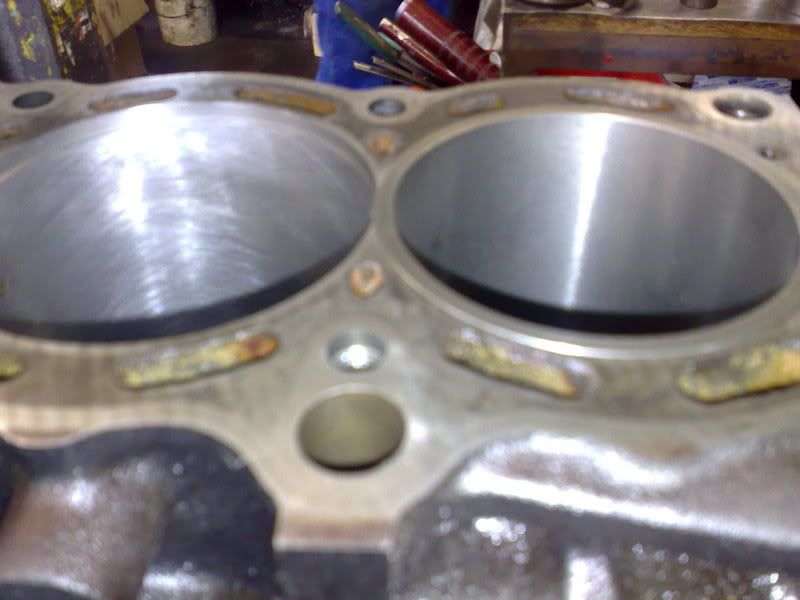

Torque plate honed..

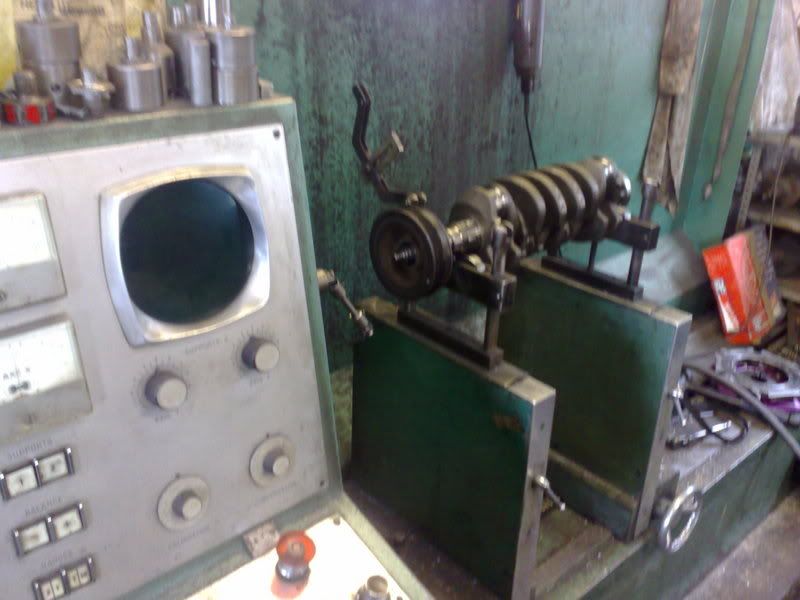

Balanced crank

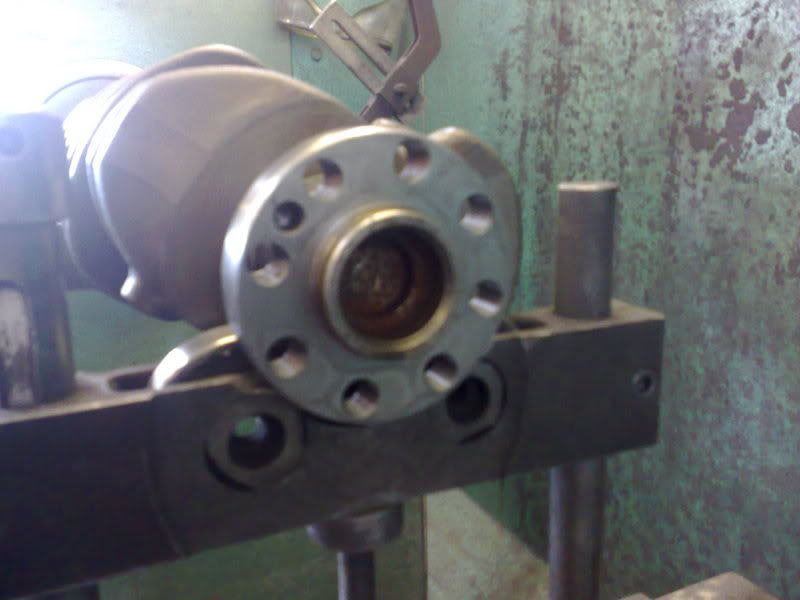

Modified 5S-FE bolt pattern to larger 3S-GTE bolt size + PCD... results in much better fitment of the flywheel

EarL · Post by **EarL** » Sun Jul 08, 2007 7:20 am

Looking good Nath.

Century Motorsport · Post by **Century Motorsport** » Wed Jul 11, 2007 9:45 pm

Well today has been busy!!!

Here are the results...

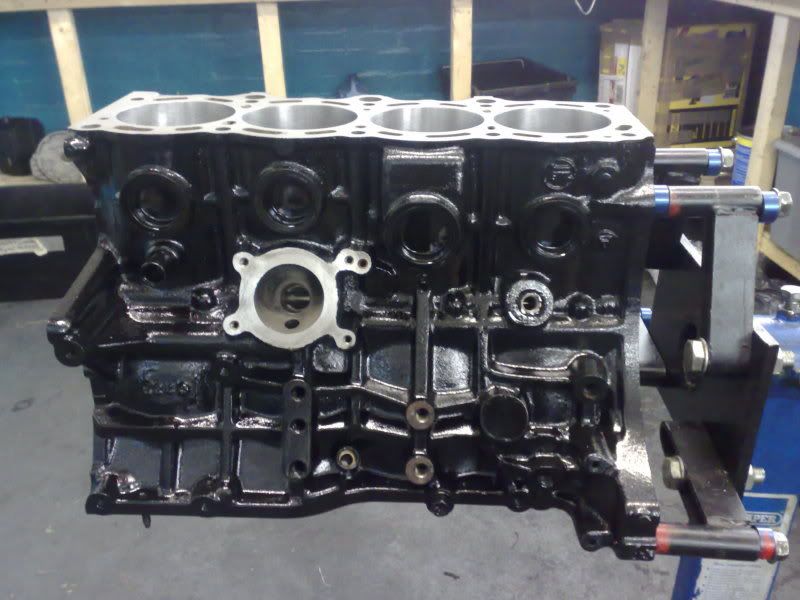

started as this..

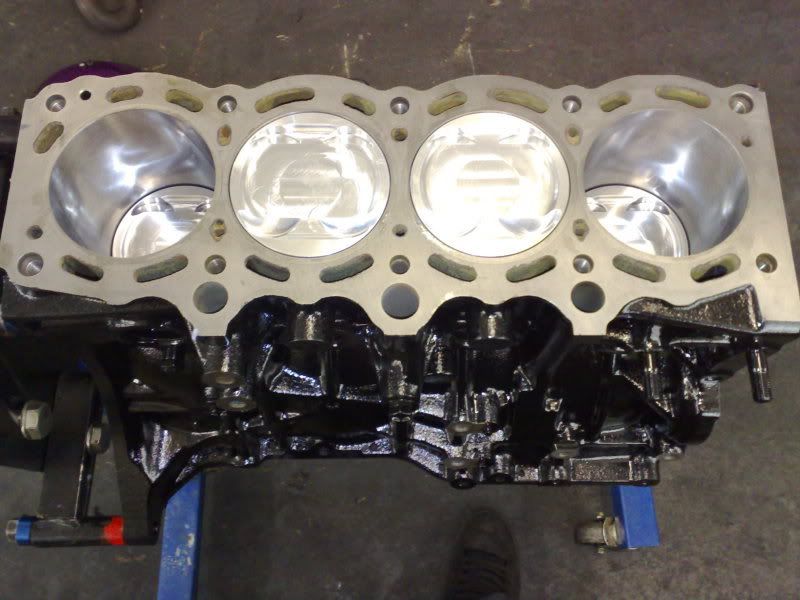

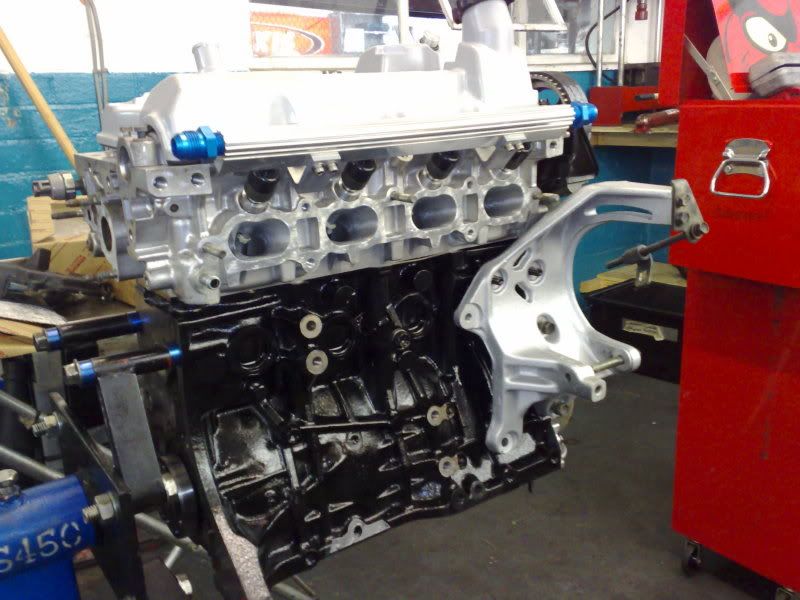

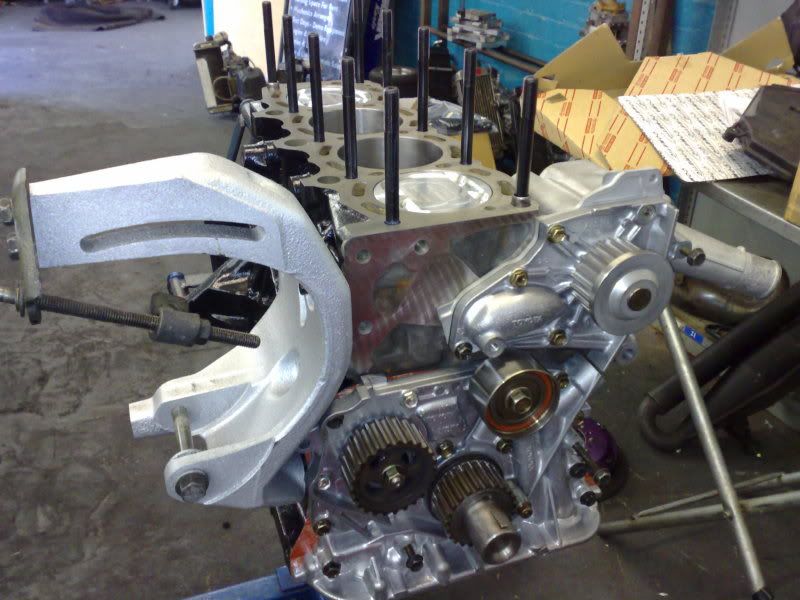

then progressed....

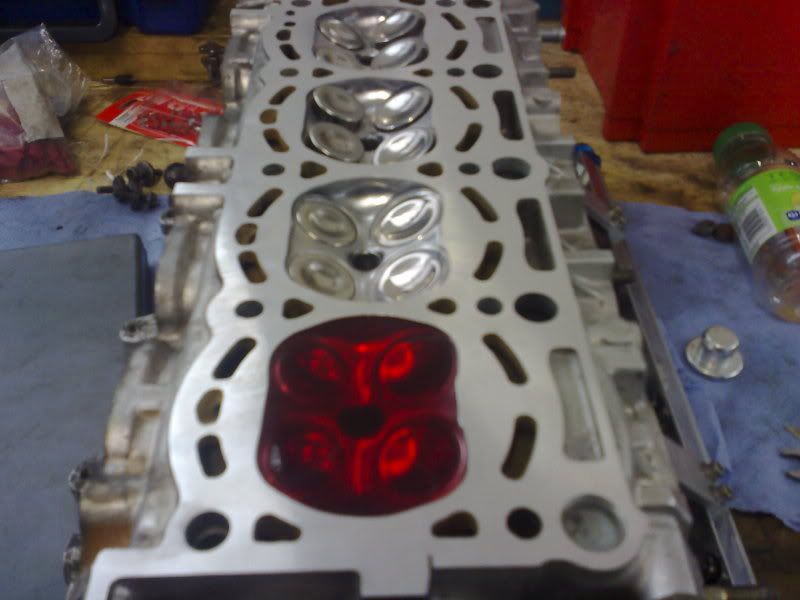

Some measuring and calculations were made to make sure everything is A-OK

Compression working out at a nice 8.7-1

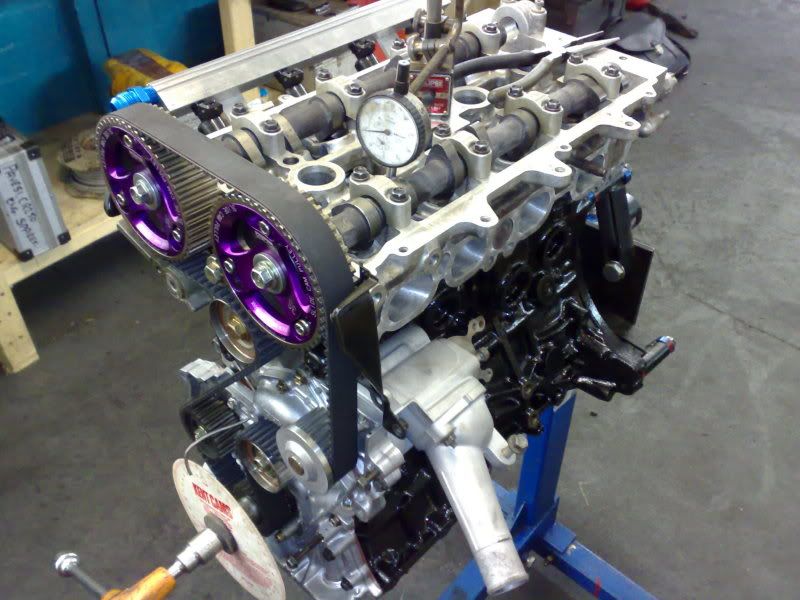

Then time to dial the cams in..

Just some nice pics..

More work being carried out tomo, fitting sump then other bits with the view of the motor in and running by the weekend....

Nathan

DavidM · Post by **DavidM** » Wed Jul 11, 2007 10:02 pm

Just beautiful

EarL · Post by **EarL** » Thu Jul 12, 2007 8:22 am

Excellent stuff Nath. Come on fella, you can do it...

hicks · Post by **hicks** » Thu Jul 12, 2007 10:59 am

amasing work, certainly looks like you know your stuff and have the right gear for the job.

seems to be coming along quickly.

Century Motorsport · Post by **Century Motorsport** » Thu Jul 12, 2007 5:20 pm

Cheers guys,

Things at the min are running smoothly. Not had chance working on it today - its come at the wrong time as the race team is a 24/7 job ATM but i have put aside tomorrow and sat for it so fingers crossed we should be live by sat!

I'll keep posting progress pics as i go.

Nathan

Quigonjay · Post by **Quigonjay** » Fri Jul 13, 2007 7:57 am

cant wait for the finished article

Century Motorsport · Post by **Century Motorsport** » Fri Jul 13, 2007 7:01 pm

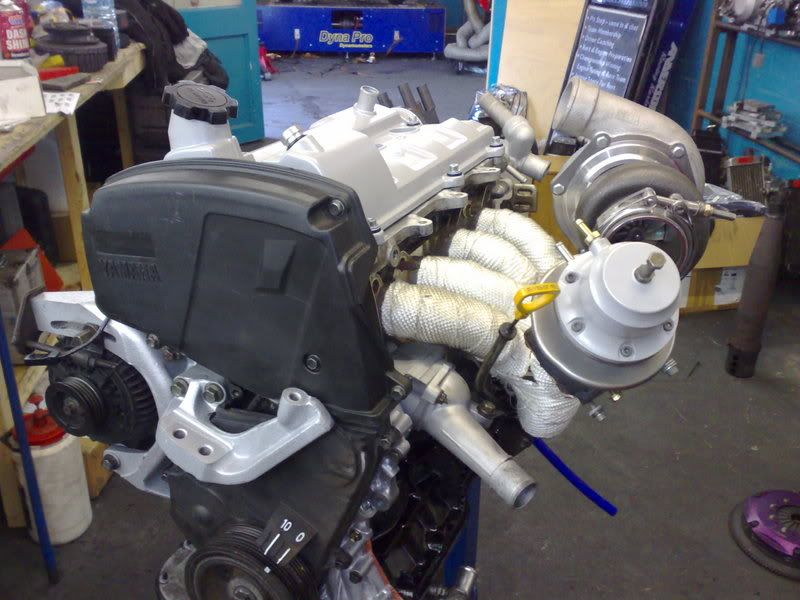

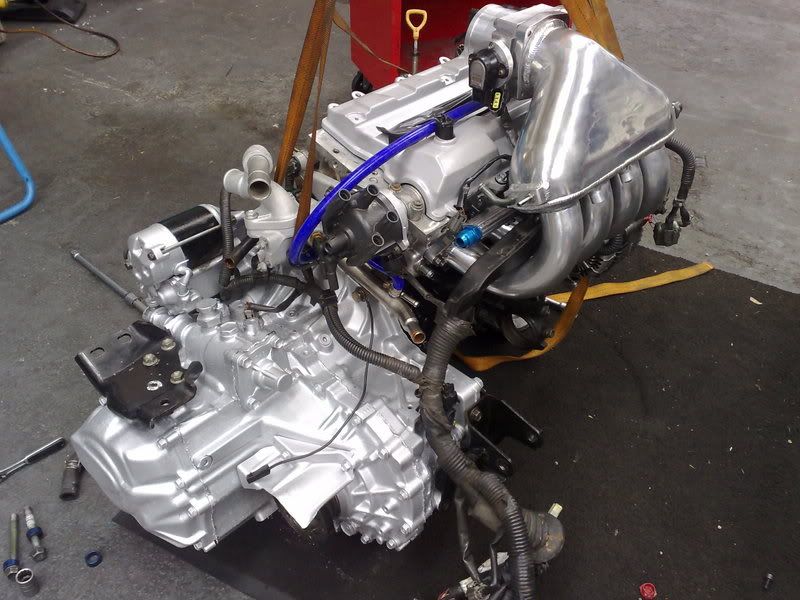

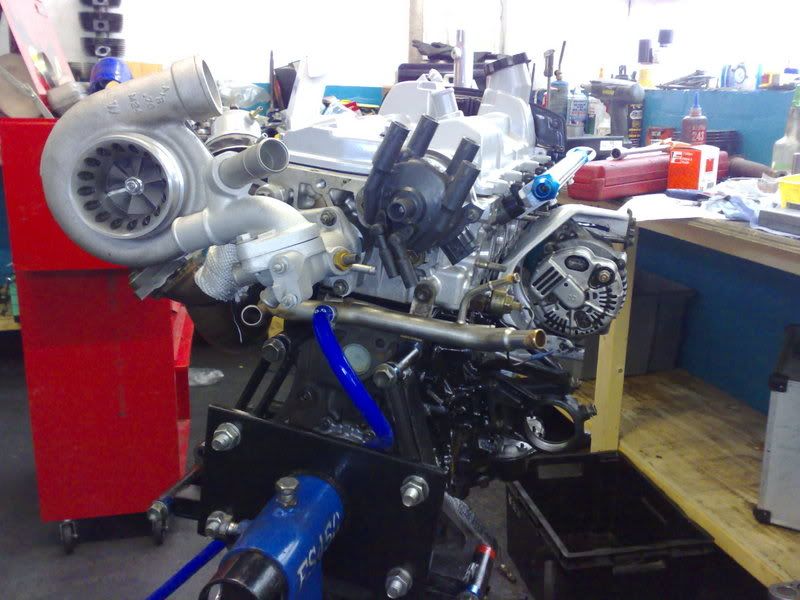

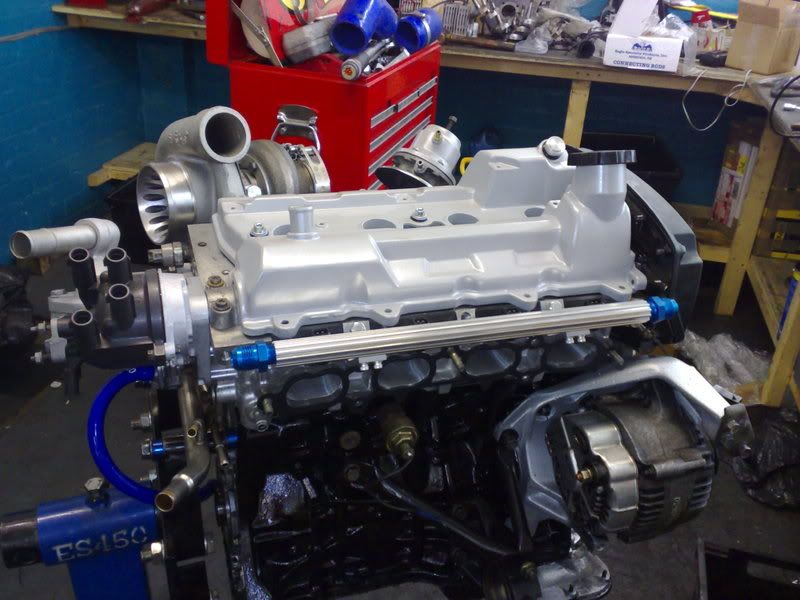

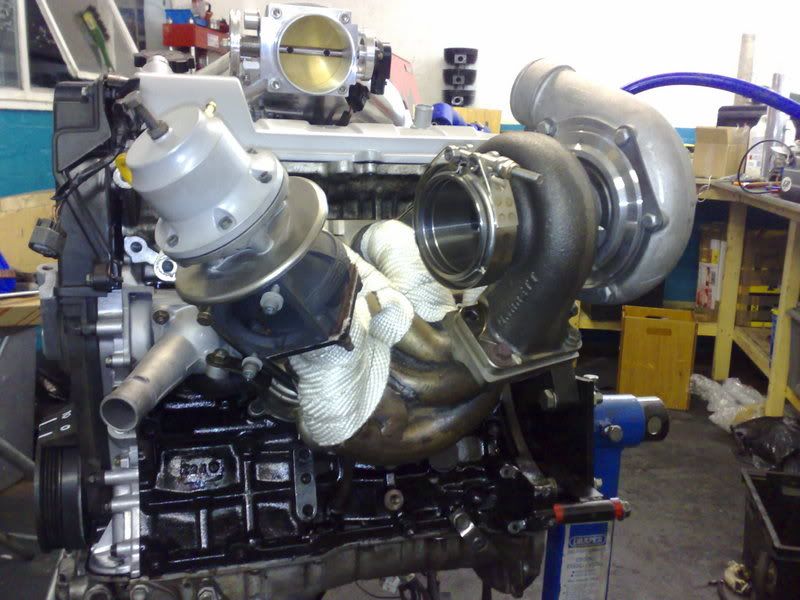

Slow progress today - had to make sure everything was perfect and a few bits took longer than expected but the engine is now ready to have the clutch and gearbox fitted then fitted to the car. This will be happening tomo. Some more pics..

SW20Paul · Post by **SW20Paul** » Fri Jul 13, 2007 7:18 pm

Wow thats looks really high quality

Its a shame to hide it inside a car.

Looks set to me a bit nippy

Keep up the good work, Do you still think it will be running tomorrow then ?

scotiamr2t · Post by **scotiamr2t** » Fri Jul 13, 2007 7:28 pm

fantastic! cant wait to see this thing up an rputtin down some serious power!

you still going to be running a TMI nath?

im looking for a decent inlet mani for my car at the minute, but would prefer one that has the TB in the boot like the phoenix power item. trying to find one is a mare though, visiting a motorsport fabricator next weekend to see about having a custom peice made

Century Motorsport · Post by **Century Motorsport** » Fri Jul 13, 2007 7:31 pm

Well the jubilee clips (of all things!!) never turbed up today so i cant fit coolant pipes, so it will be monday now when she is fired into life but all work will still be carried out this weekend.

Yes im still running boot mount, a rear or side facing TB would be fantastic but unfortunately were restriced with the options on the Rev 3 and the KU manifold seemed the only option for me at the time so ill have to stay with the current pipe setup.

As for power.... who knows! Im looking for lots of torque though!

EarL · Post by **EarL** » Sat Jul 14, 2007 9:53 pm

Century Motorsport wrote:Well the jubilee clips (of all things!!) never turbed up today so i cant fit coolant pipes, so it will be monday now when she is fired into life but all work will still be carried out this weekend.

Yes im still running boot mount, a rear or side facing TB would be fantastic but unfortunately were restriced with the options on the Rev 3 and the KU manifold seemed the only option for me at the time so ill have to stay with the current pipe setup.

As for power.... who knows! Im looking for lots of torque though!

What sort of boost are you looking to run Nath?

It's looking mighty tough mate. Looking forward to seeing and hearing it running.

BTW. If that motor is as powerfull as it looks, I'd be using Mikalor clamps, not Jubilee clips.

EarL.

Century Motorsport · Post by **Century Motorsport** » Sat Jul 14, 2007 11:06 pm

I plan to Earl - the jubilee clips are for the samco coolant hosing.

As for boost - i think we need to be looking at 2.3BAR to be getting good torque. Anything over 2.1bar and the torque sky rockets.

Race fuel would be nice but am just running out of time!

Anyway - more pics....

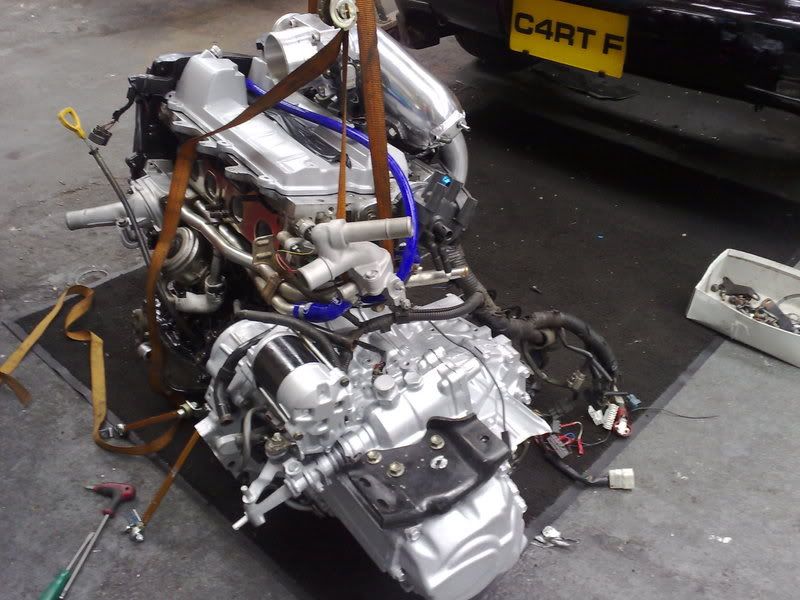

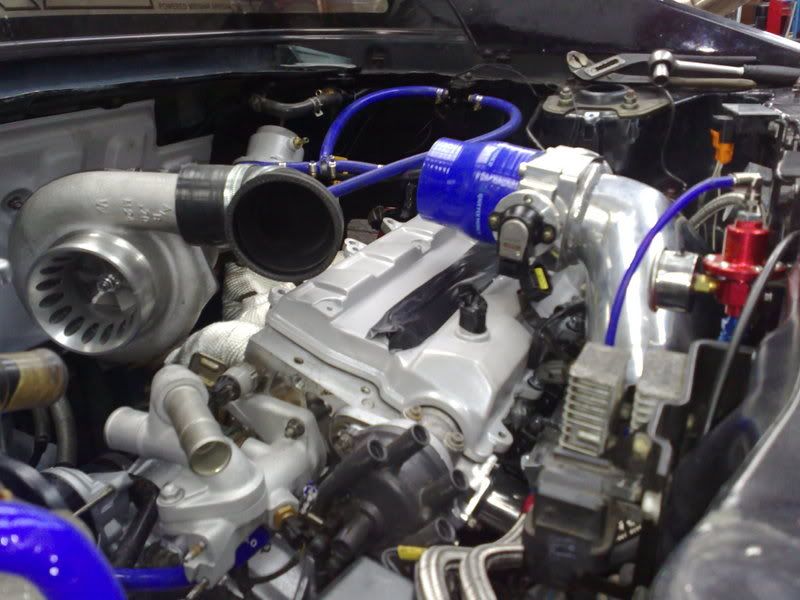

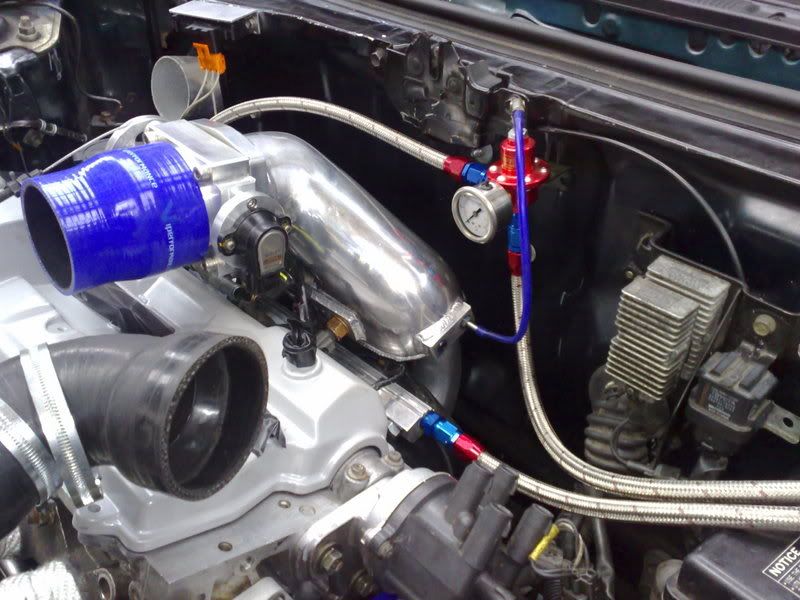

Was a fairly slow day, got engine in but had to fab a few things up then came the fun of fitting all the fuel + turbo lines. Bosch pump in place and fuel lines are all done - turbo drain needs to be finished still but we really broke the back of it today... more work tomorrow.

Also, drag tyres were ordered yesterday so we should be having good grip @ TOTB
