help with aerial
Moderators: IMOC Moderators, IMOC Committee Members
-
swaggansway
Re: help with aerial

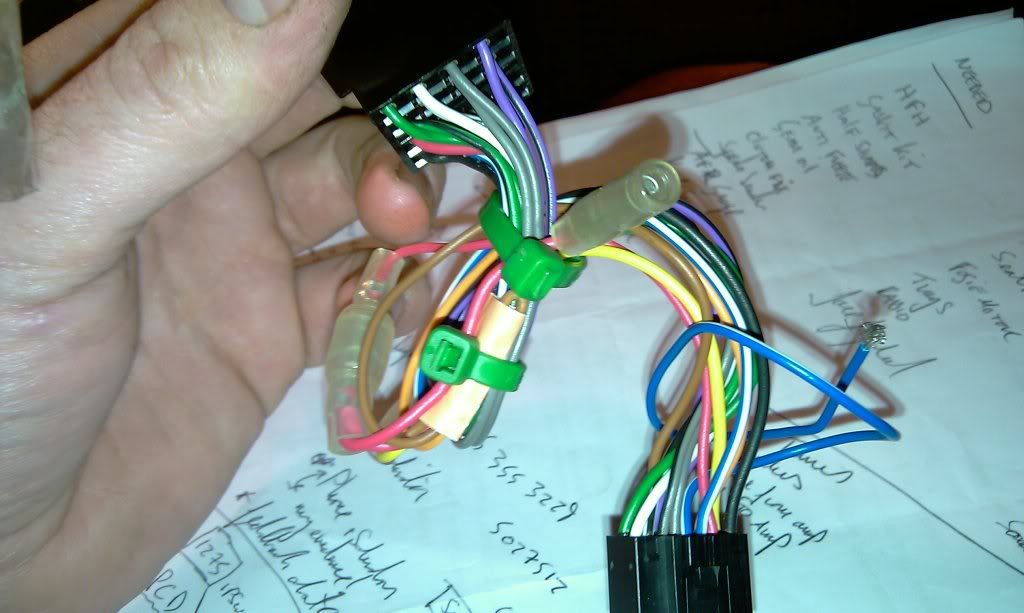

right.
..
the end with female tape wrapped conecters....
2 white-fl+/-
2grey_ as above for rl
2 purple, rr
2green, rl
yellow is mains power... from clock
black is ground....attach it to the screw which holds bracket to centre console!
the red(attached to is) can wire as I have but should go on clock red. this turns unit on of when ignition on off. its called a signal wire and labeled ignition. as you can see I have spiced it on other side of big connector so I can bypass signal and have my unit on when ignition is off (best of both worlds).
the blue one is to antenna
the Orange one is for amplifier remote control(same as blue realy)
the brown one which is tucked up and not through the adapter is mute for mobile fone
the blue white one not going through sensor is to wire into the dash light. so when you turn your lights on the unit will illuminate, general never used on more units!
but......yours may differ but should be similar. just pm me with pix if u get stuck
..the end with female tape wrapped conecters.
...2 white-fl+/-
2grey_ as above for rl
2 purple, rr
2green, rl
yellow is mains power.
.. from clockblack is ground.
...attach it to the screw which holds bracket to centre console!the red
(attached to is) can wire as I have but should go on clock red. this turns unit on of when ignition on off. its called a signal wire and labeled ignition. as you can see I have spiced it on other side of big connector so I can bypass signal and have my unit on when ignition is off (best of both worlds).the blue one is to antenna
the Orange one is for amplifier remote control
(same as blue realy)the brown one which is tucked up and not through the adapter is mute for mobile fone
the blue white one not going through sensor is to wire into the dash light
. so when you turn your lights on the unit will illuminate, general never used on more units!but.
.....yours may differ but should be similar. just pm me with pix if u get stuck -
swaggansway
Re: help with aerial

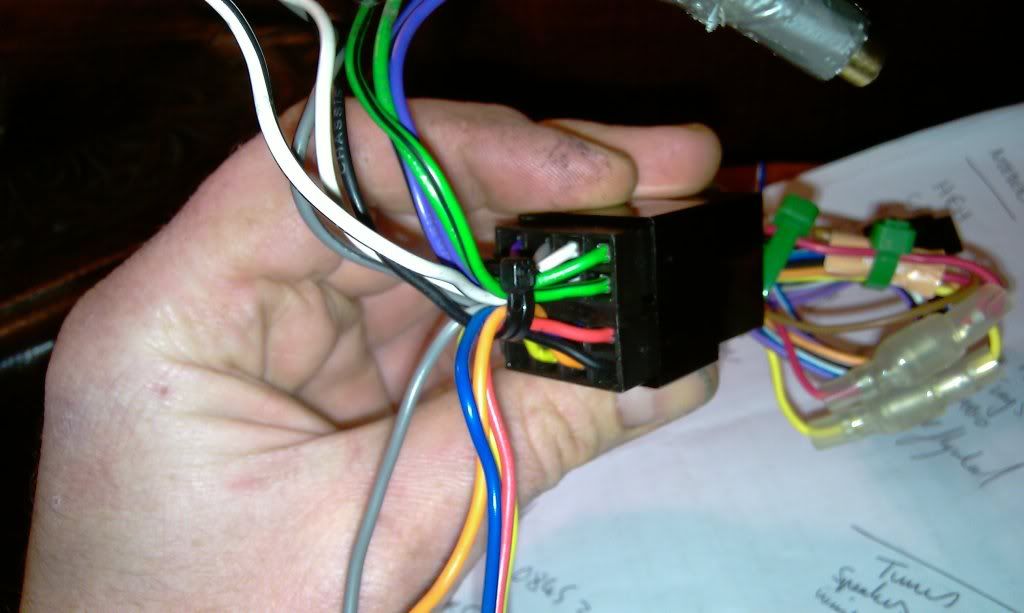

I just blew up ya pix...... if you look close there is wrighting on your wires telling u what they are 4 u nugget lol
..... if you look close there is wrighting on your wires telling u what they are 4 u nugget lol Re: help with aerial
Iknow the e ones are that are on the plug, but I need to know which ones from the car match up the the ones on the plug.
EG blue one on plug marked areial connects to black with red strip from car.
EG blue one on plug marked areial connects to black with red strip from car.
-
swaggansway
Re: help with aerial
I will go through what all the toyota wires are for....they are all listed on the link I sent you but don't try and figure what's what from the location on the plug in the diagram because that is all for stock hu's lol the colour coding is right tho!
...they are all listed on the link I sent you but don't try and figure what's what from the location on the plug in the diagram because that is all for stock hu's lol the colour coding is right tho! -
swaggansway
Re: help with aerial
maybe u should have posted your question under ice and security.....I mean I am only intermediate at this stuff, there are pros on there who prob explain it betta
....I mean I am only intermediate at this stuff, there are pros on there who prob explain it bettaRe: help with aerial
Yeah kinda messed up there. Right going to make a cup of tea then have a look at it
Right going to make a cup of tea then have a look at it-
swaggansway
Re: help with aerial
have you plugged your ariel lead into the back (new unit)
have you plugged the right one on the head unit! there are 2 remember, one for your screen ariel
(new unit)have you plugged the right one on the head unit! there are 2 remember, one for your screen ariel
-
swaggansway
Re: help with aerial
just ensure you have the right wire. the window ariel male connecter is smaller any way. make sure the connections to male plugs are clean, to say that the wires are not messy and touching one another!
the window ariel male connecter is smaller any way. make sure the connections to male plugs are clean, to say that the wires are not messy and touching one another!
